Range Test in Practice

Achievable range on mixed urban terrain
Full Throttle
*The throttle can be installed separately and is intended exclusively for use on private property. Public road use must comply with local regulations.

Preset: Up to 60 km

max-25 km/h
Range:
60
 km

After unlocked: Up to 40 km

max-46 km/h
Range:
40
 km
Pedal Assist

ECO: Up to 120 km

Range:
120
 km

Normal: Up to 100 km

Range:
100
 km

Sport: Up to 90 km

Range:
90
 km

Turbo: Up to 80 km

Range:
80
 km

Turbo+: Up to 70 km

Range:
70
 km
Results obtained with a rider on flat terrain. Actual range may vary depending on terrain, load, wind, temperature, tire pressure, and riding habits.

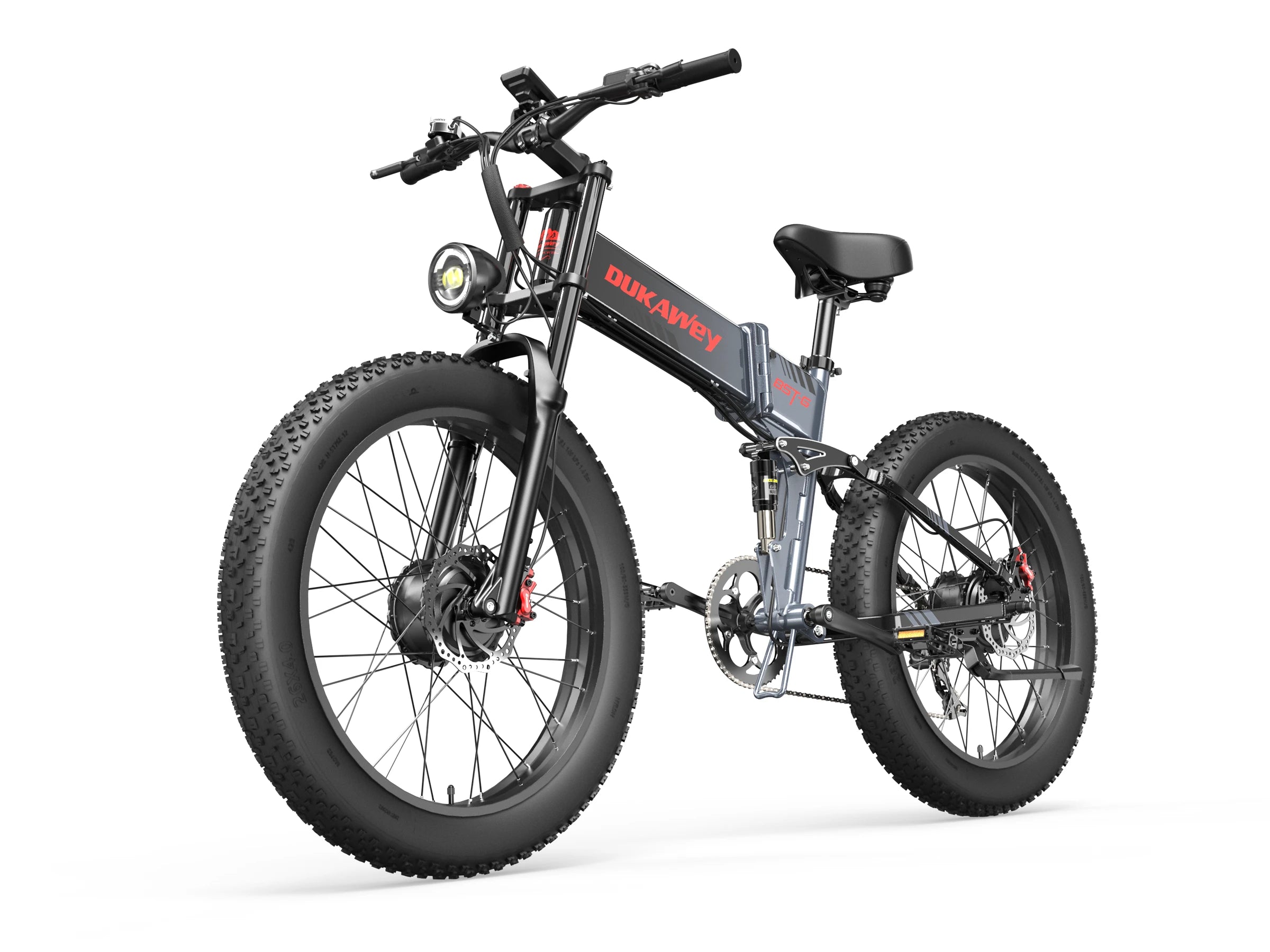

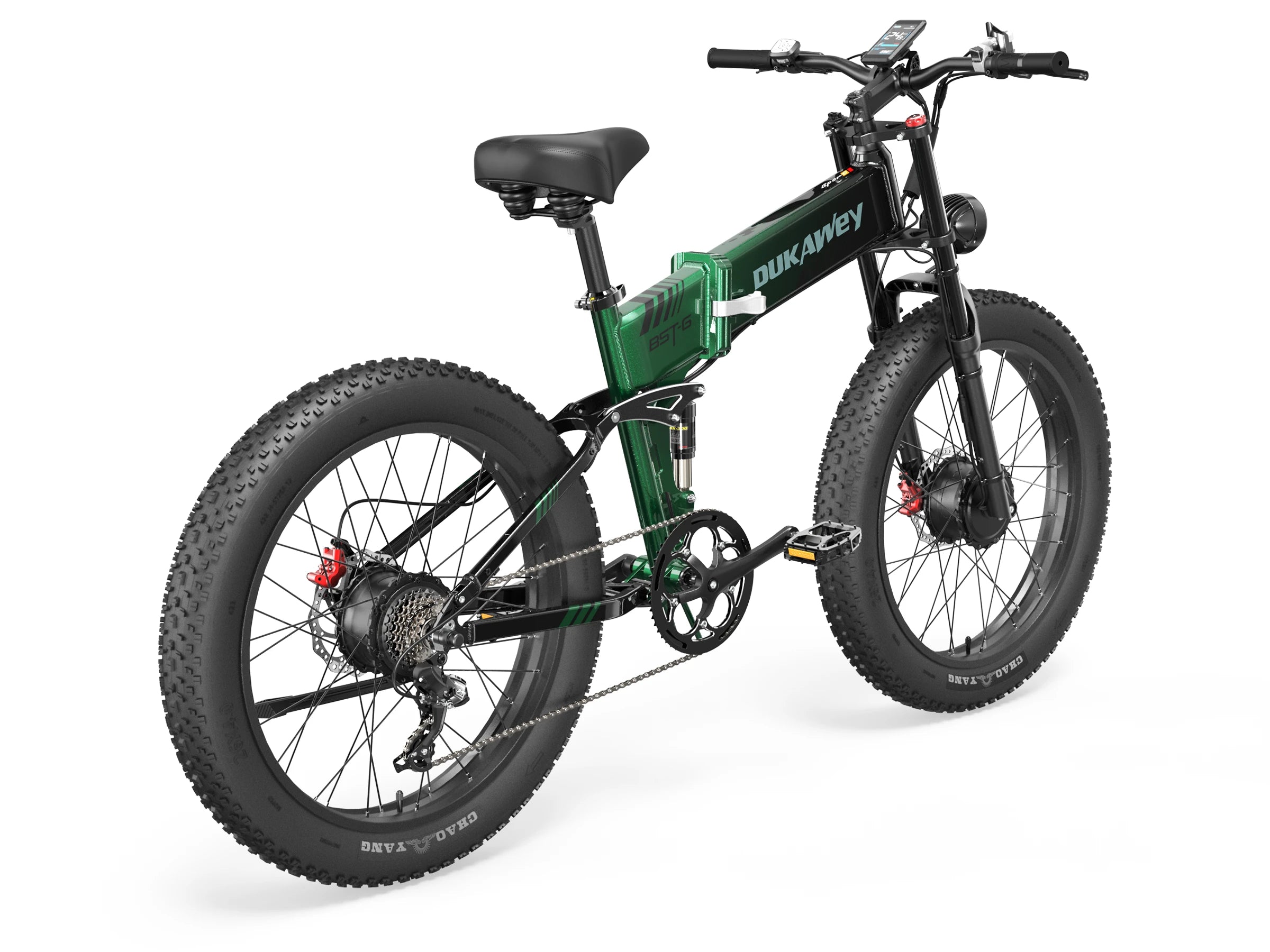

Product specification

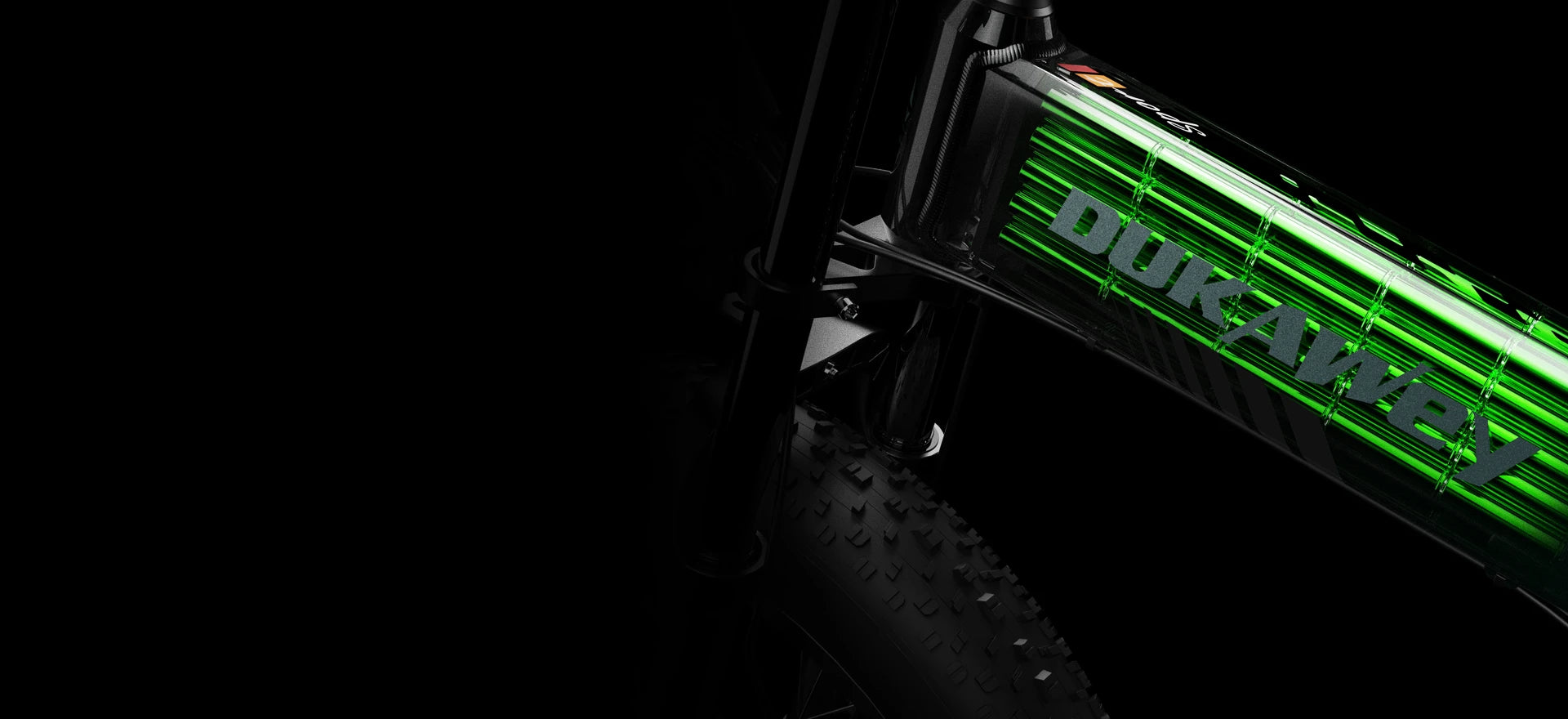

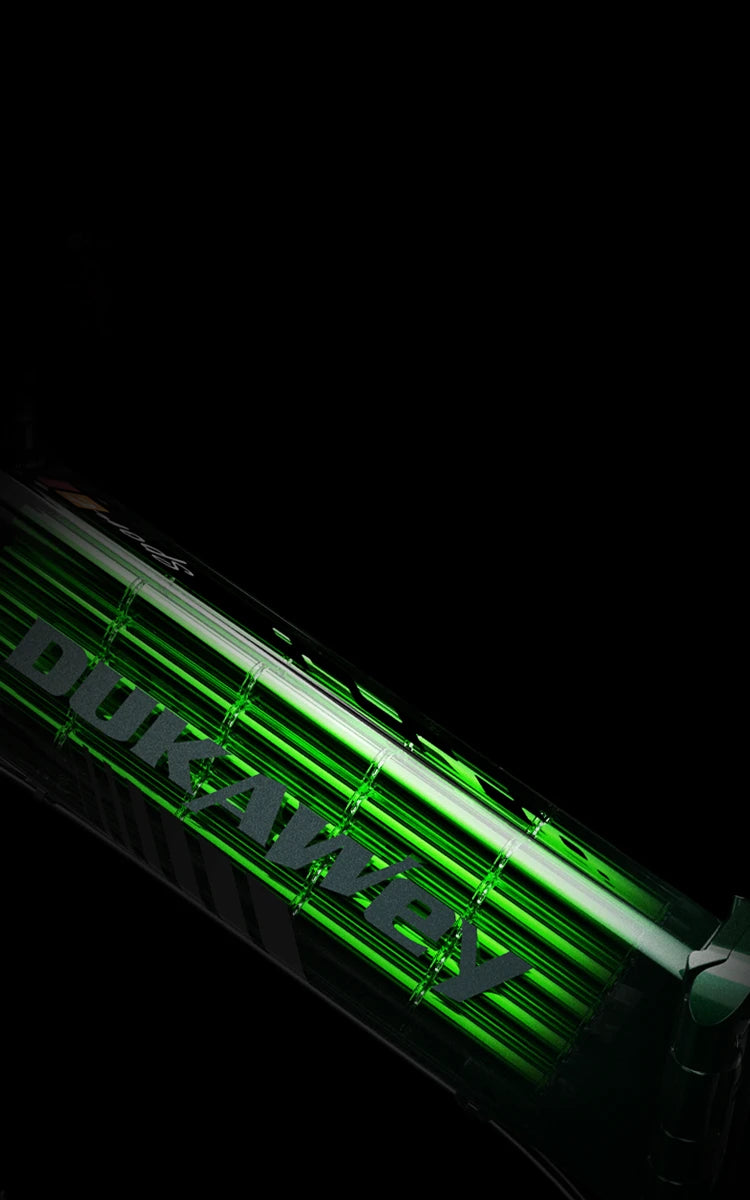

Battery 48V17.5A battery Charger 48V3A fast charger
Charging time 5-6 hours Battery life 1000 charges
Motor Front and rear dual 1000W brushless motor Speed Class Up to 25 KM/H on Level 5 PAS
Net Weight of the Bike 36.7KG (including battery) Max Load 200KG
Range 120KM Torque 2x85 N·m
Battery 48V17.5A battery
Charger 48V3A fast charger
Charging time 5-6 hours
Battery life 1000 charges

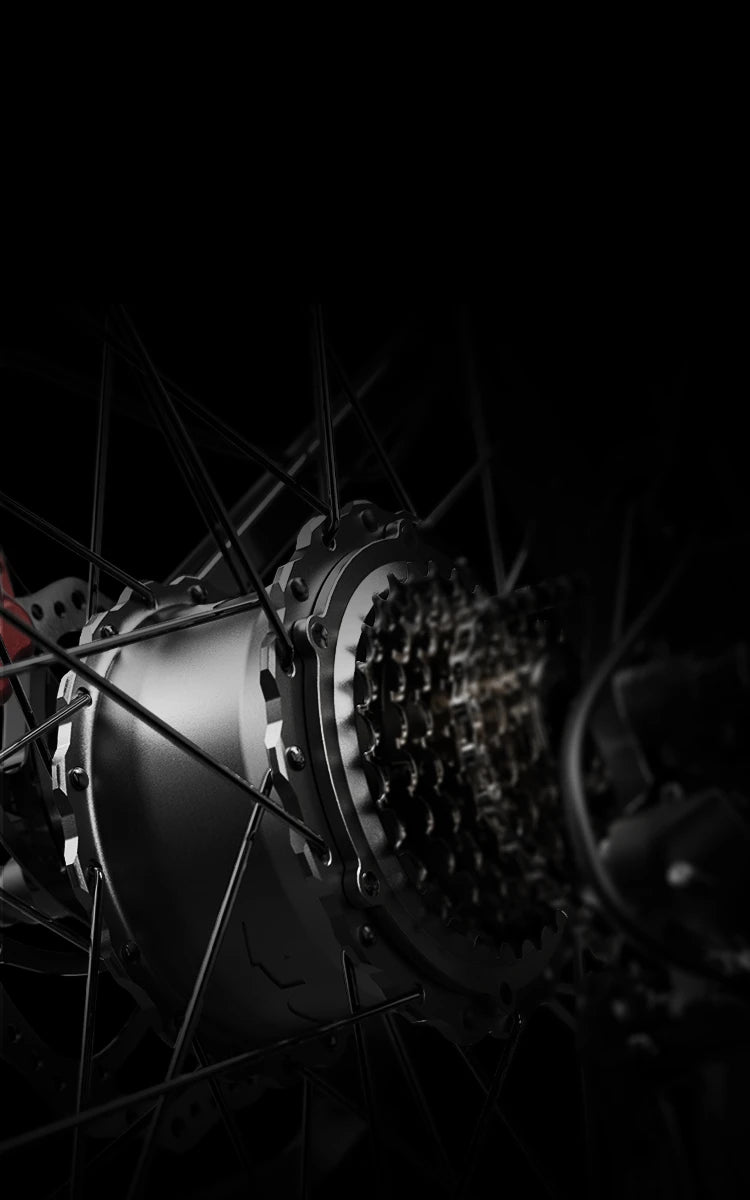

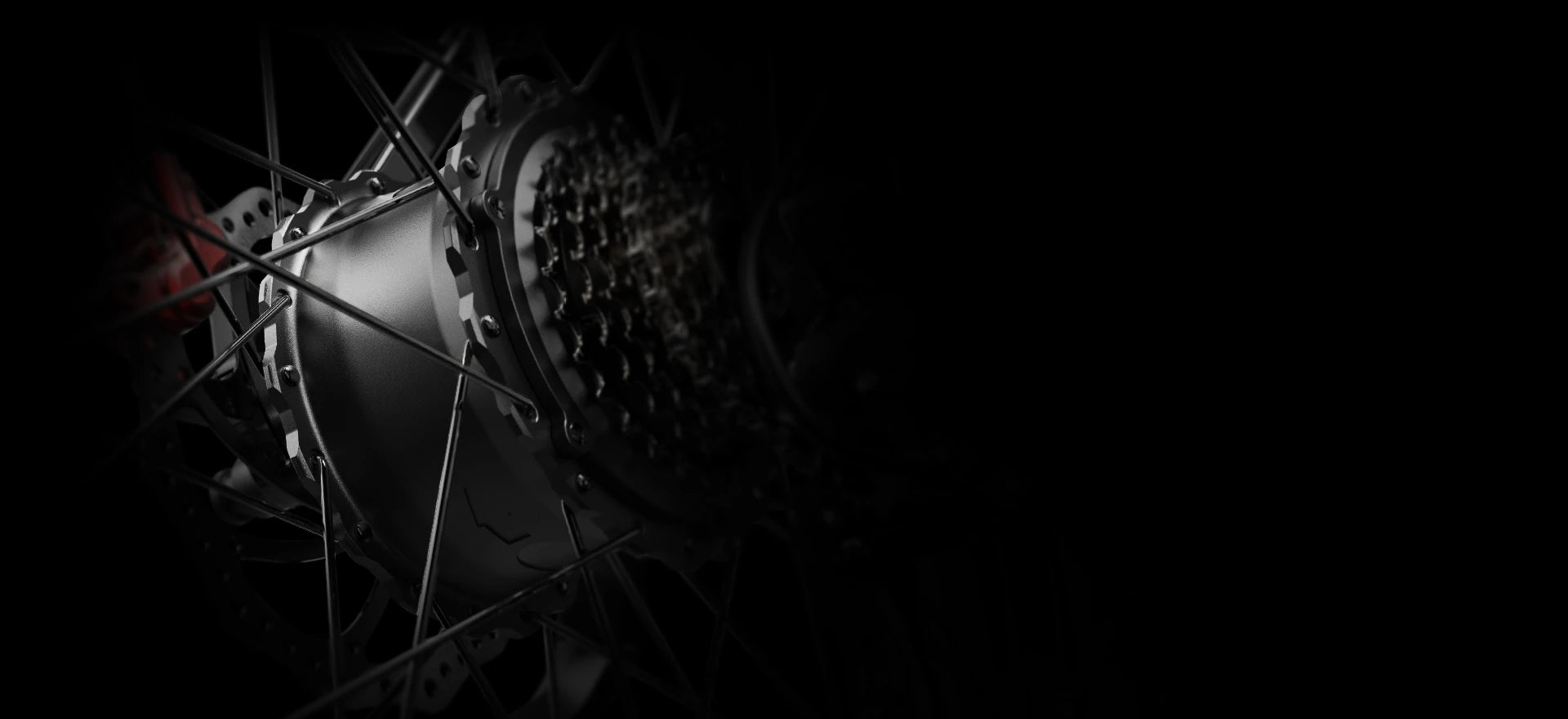

Motor Front and rear dual 1000W brushless motor
Speed Class Up to 25 KM/H on Level 5 PAS
Net Weight of the Bike 36.7KG (including battery)
Max Load 200KG
Range 120KM
Torque 2x85 N·m
Mechanical
Tire 26* 4.0" rubber fat tire Display Color LCD display
Brake ZOOM 4-Piston Hydraulic Brakes Chain KMC Stainless Chain
Crank 46T Aluminum alloy crankset Gearing Shimano 7-Speed

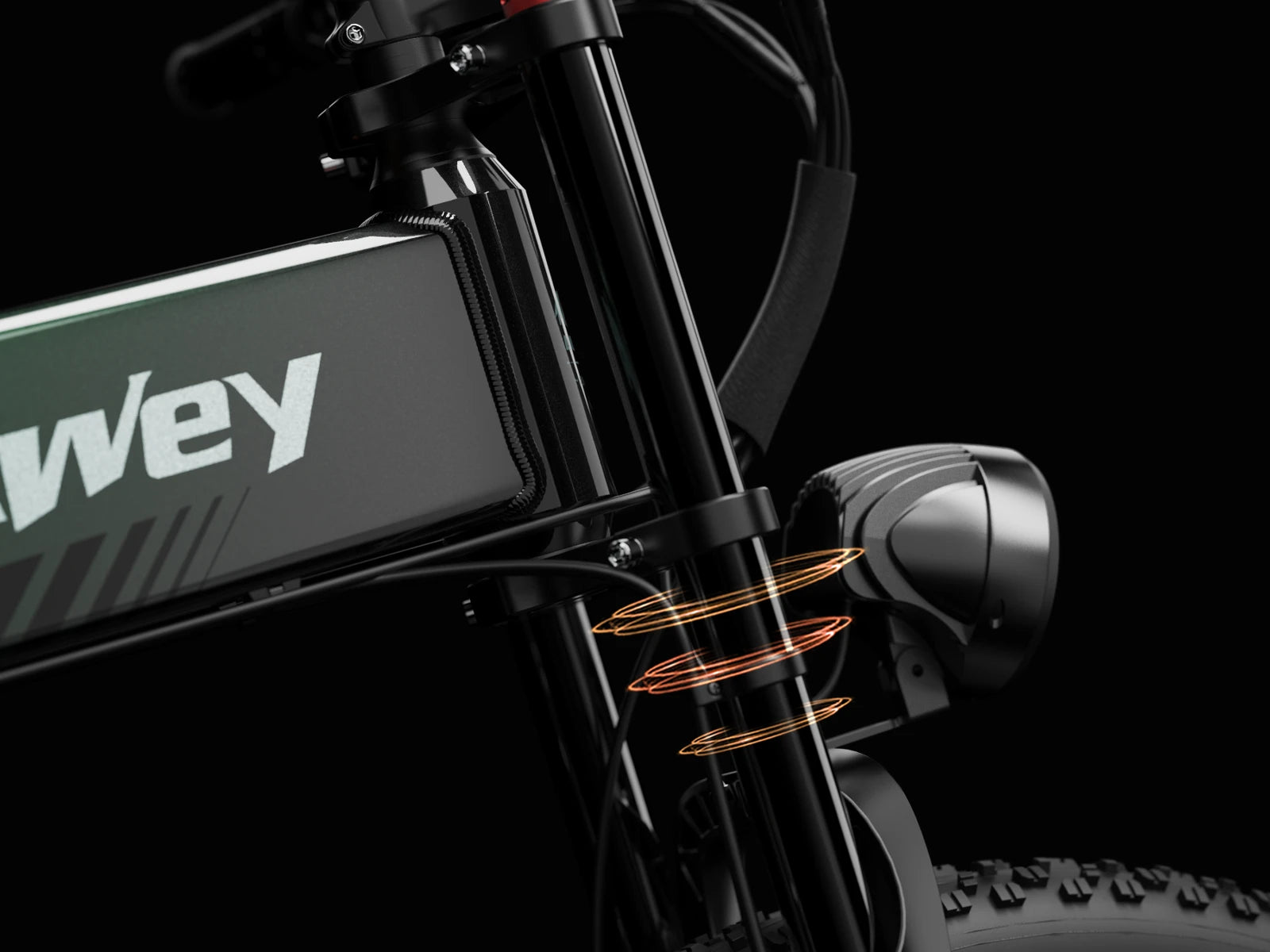

Derailleur Shimano 7 speed rear derailleur Front fork Oil spring shock absorber front fork
Frame Material 6061 Aluminum alloy Handlebar 31.8mm aluminum alloy
Rims Aluminum Alloy Kickstand 6061 Aluminum Kickstand
Saddle Quality sport seat Sensor Cadence Sensor

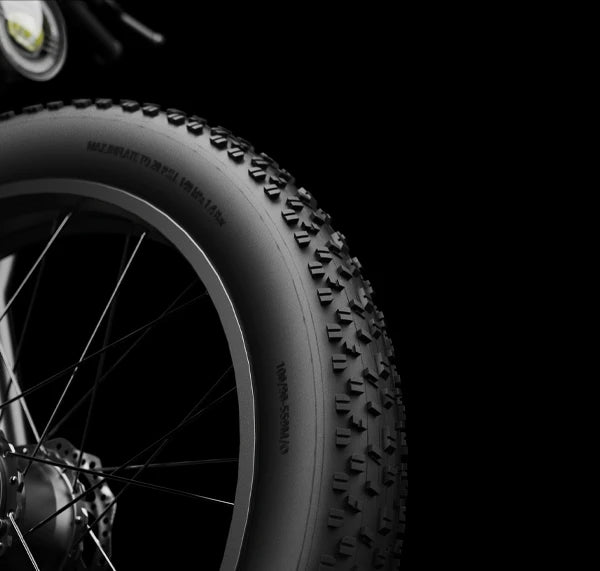

Tire 26* 4.0" rubber fat tire

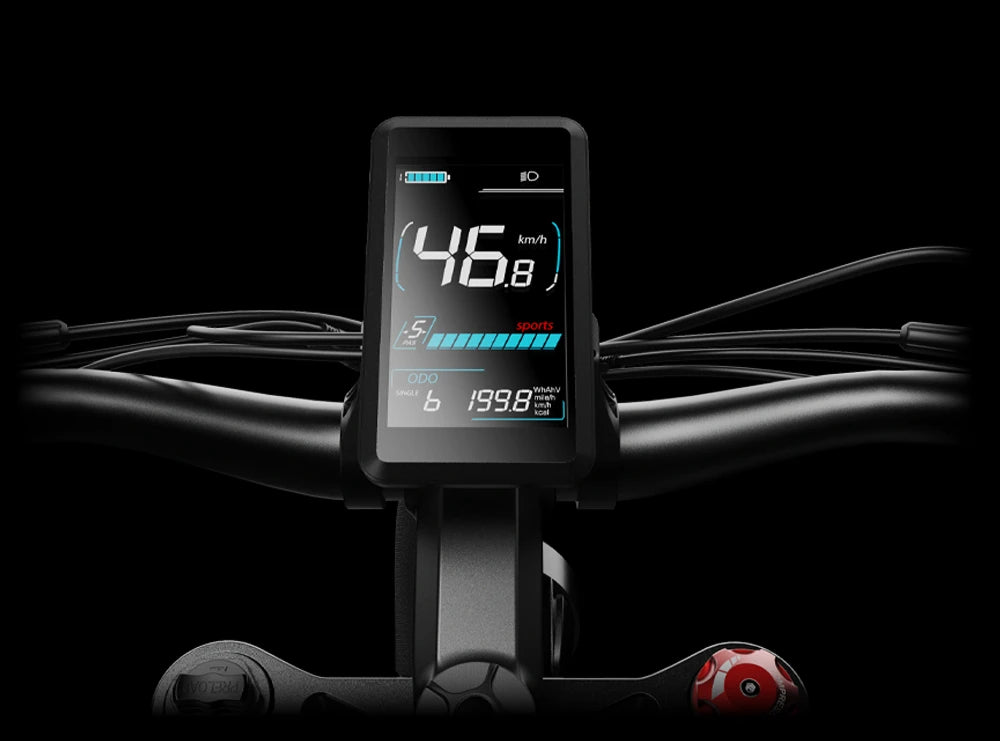

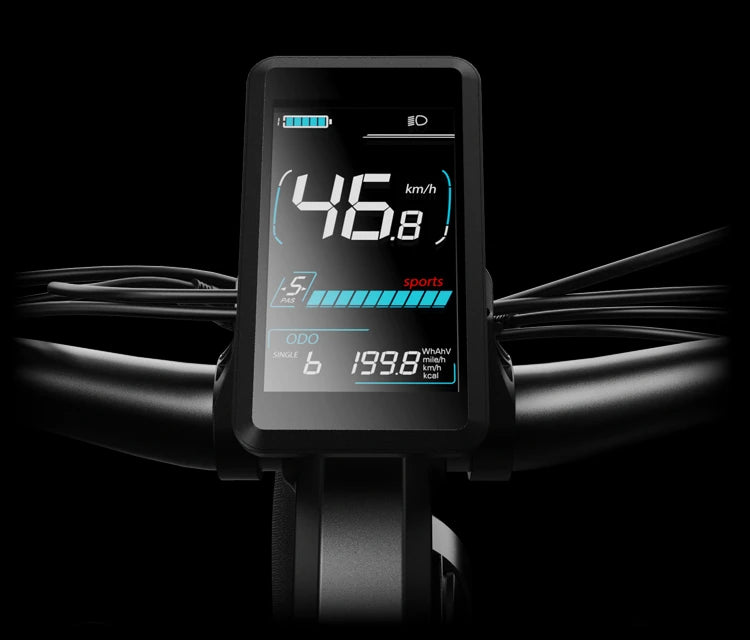

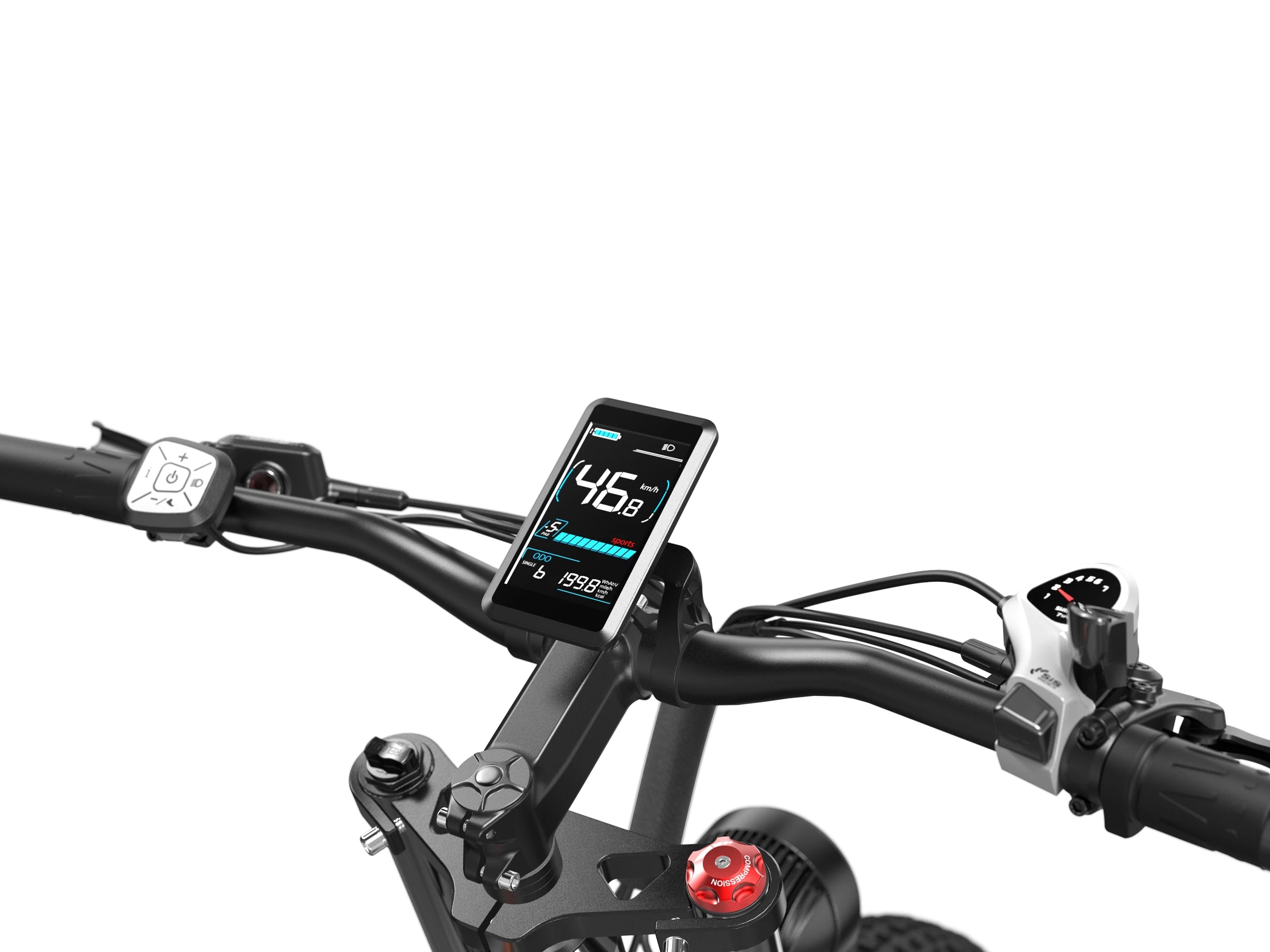

Display Color LCD display

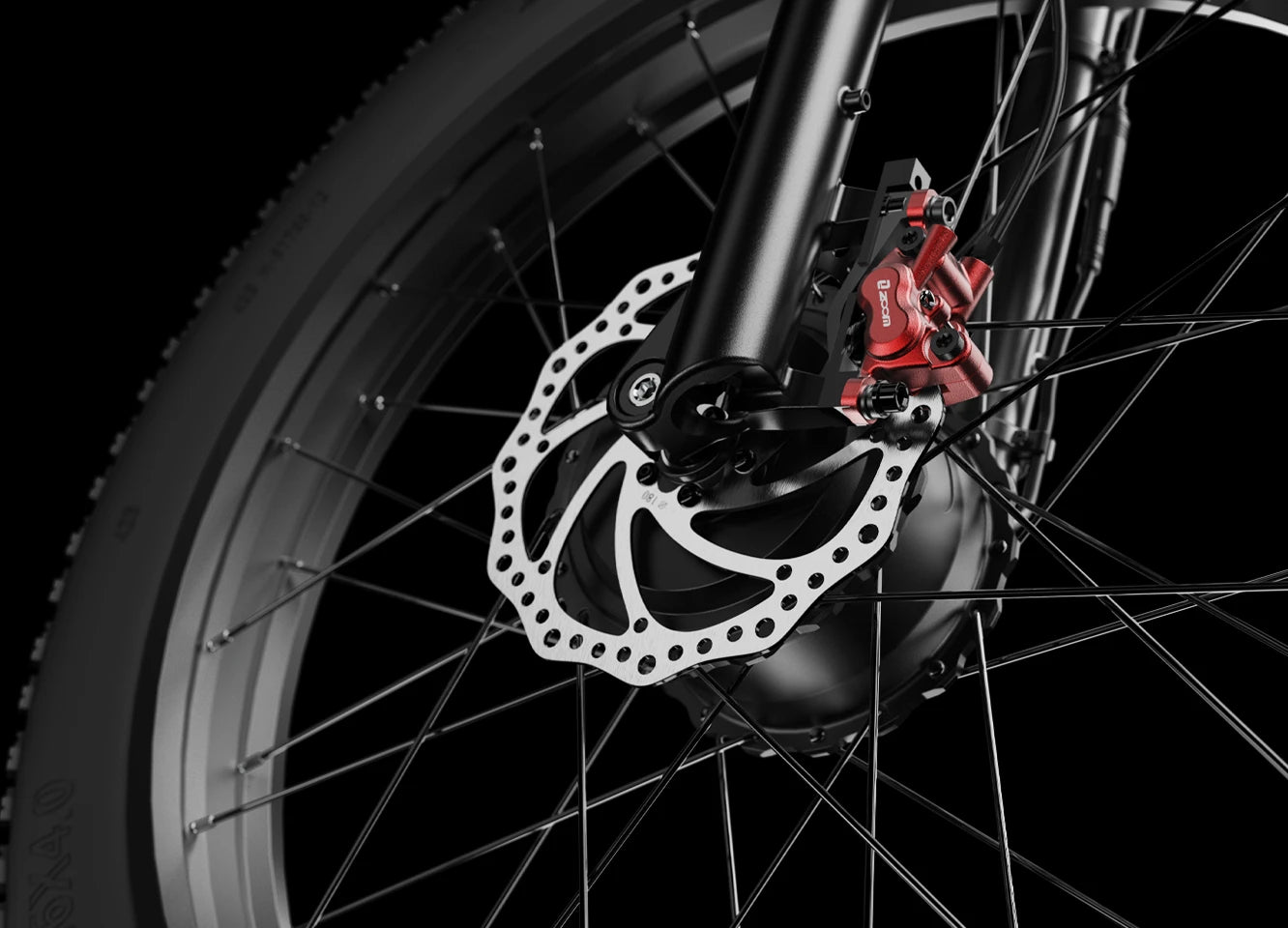

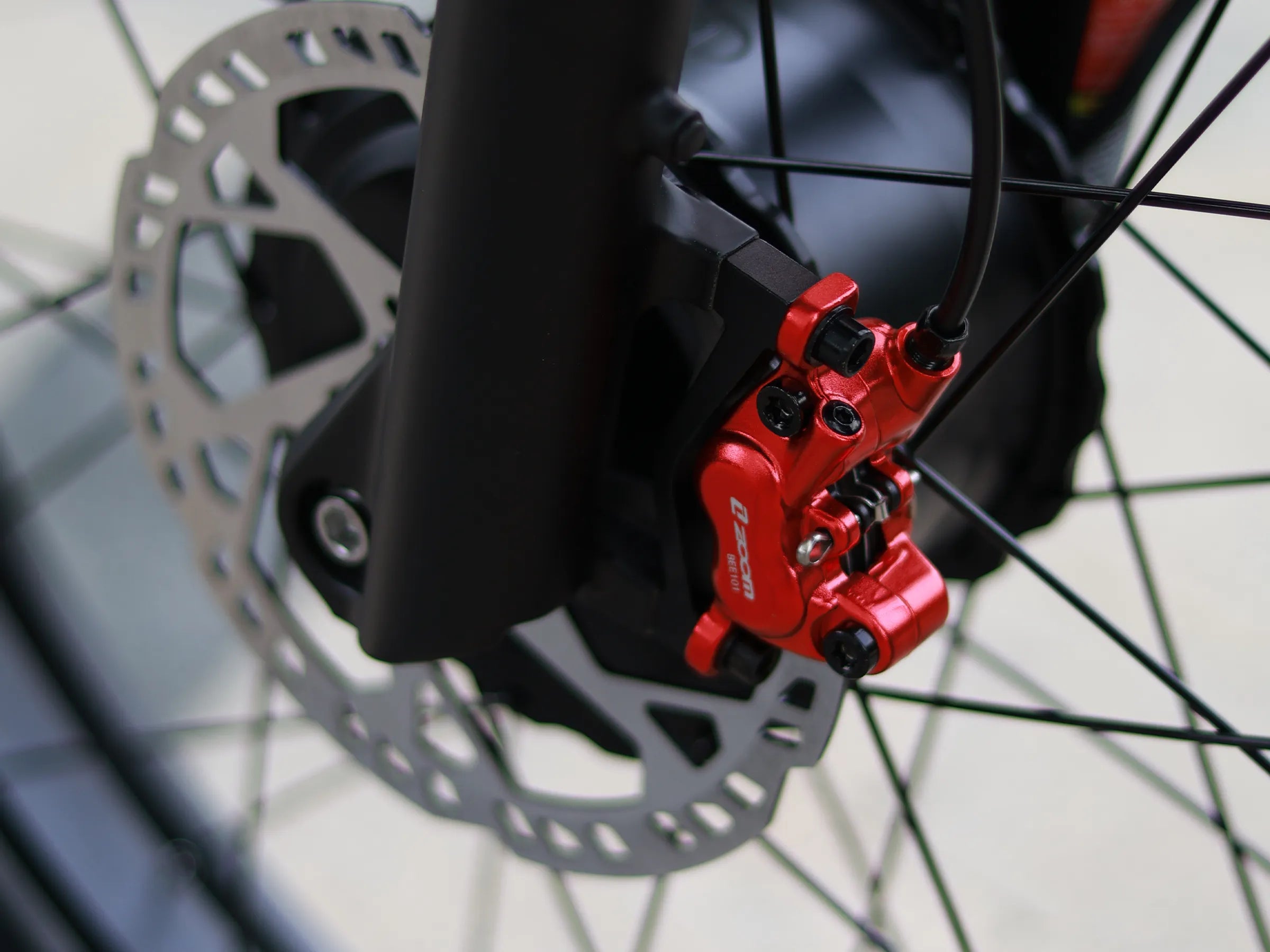

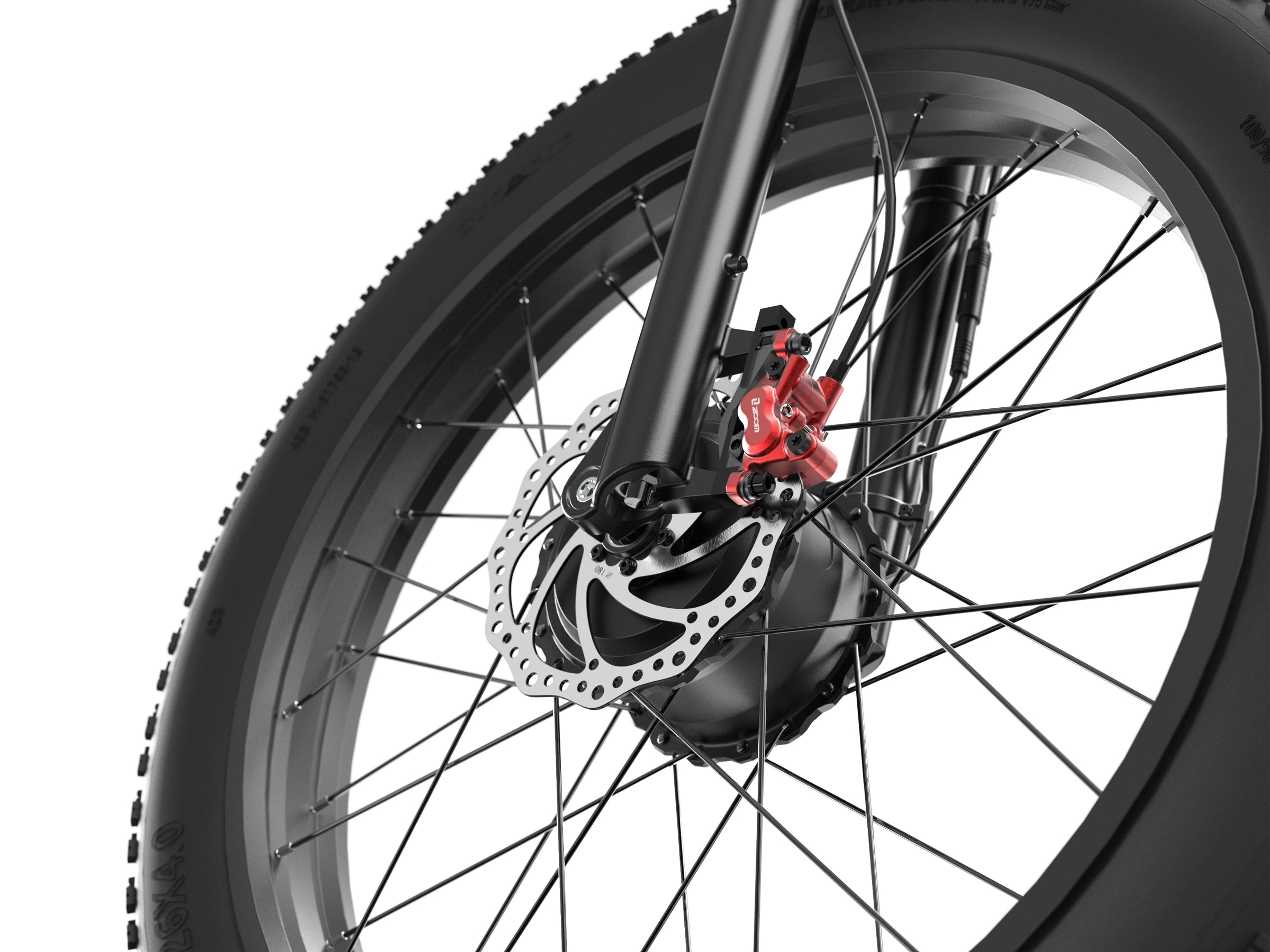

Brake ZOOM 4-Piston Hydraulic Brakes
Chain KMC Stainless Chain

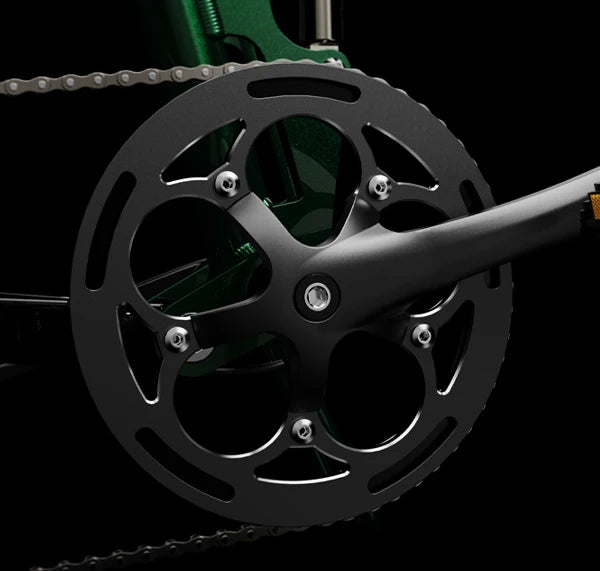

Crank 46T Aluminum alloy crankset

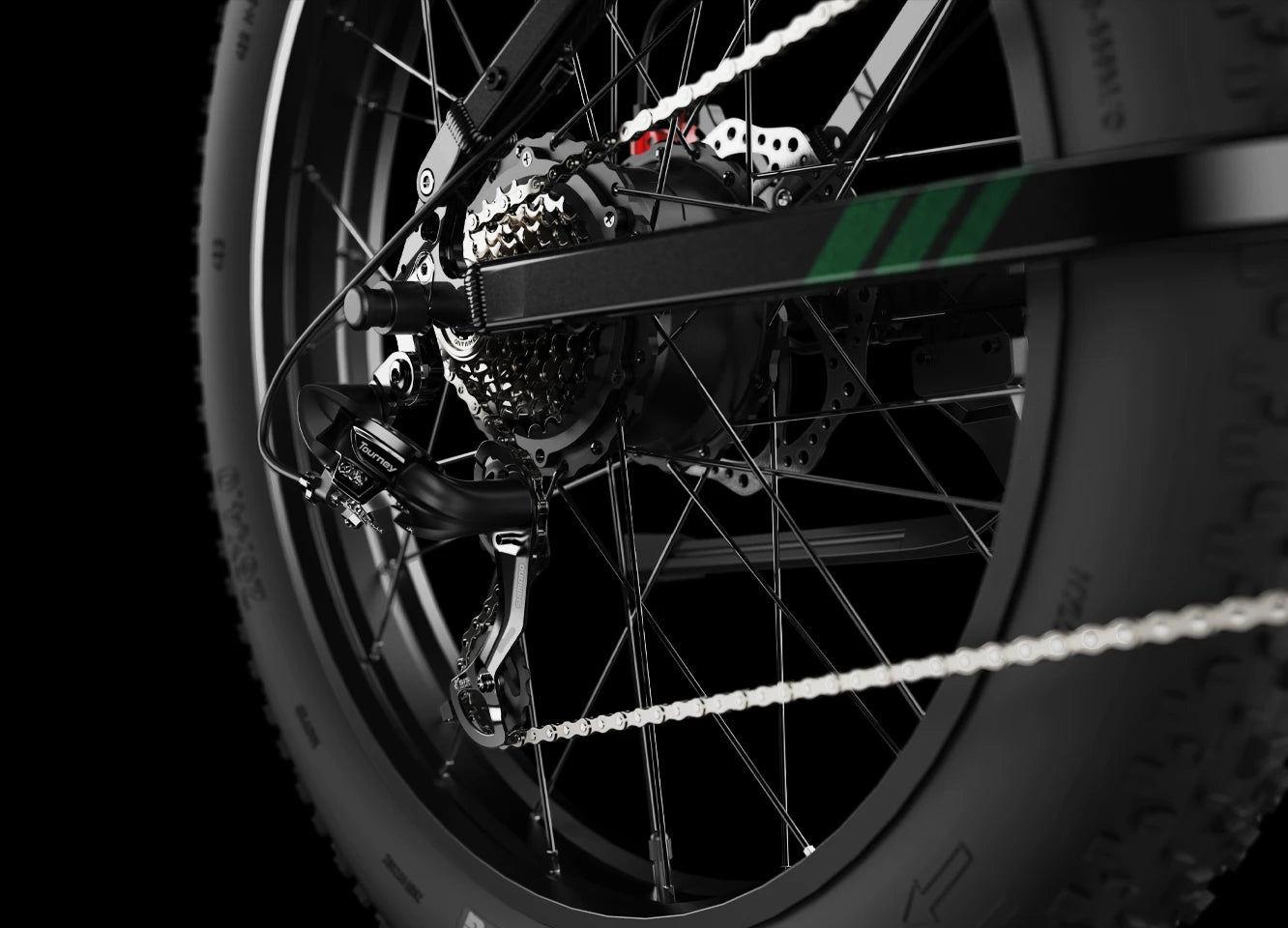

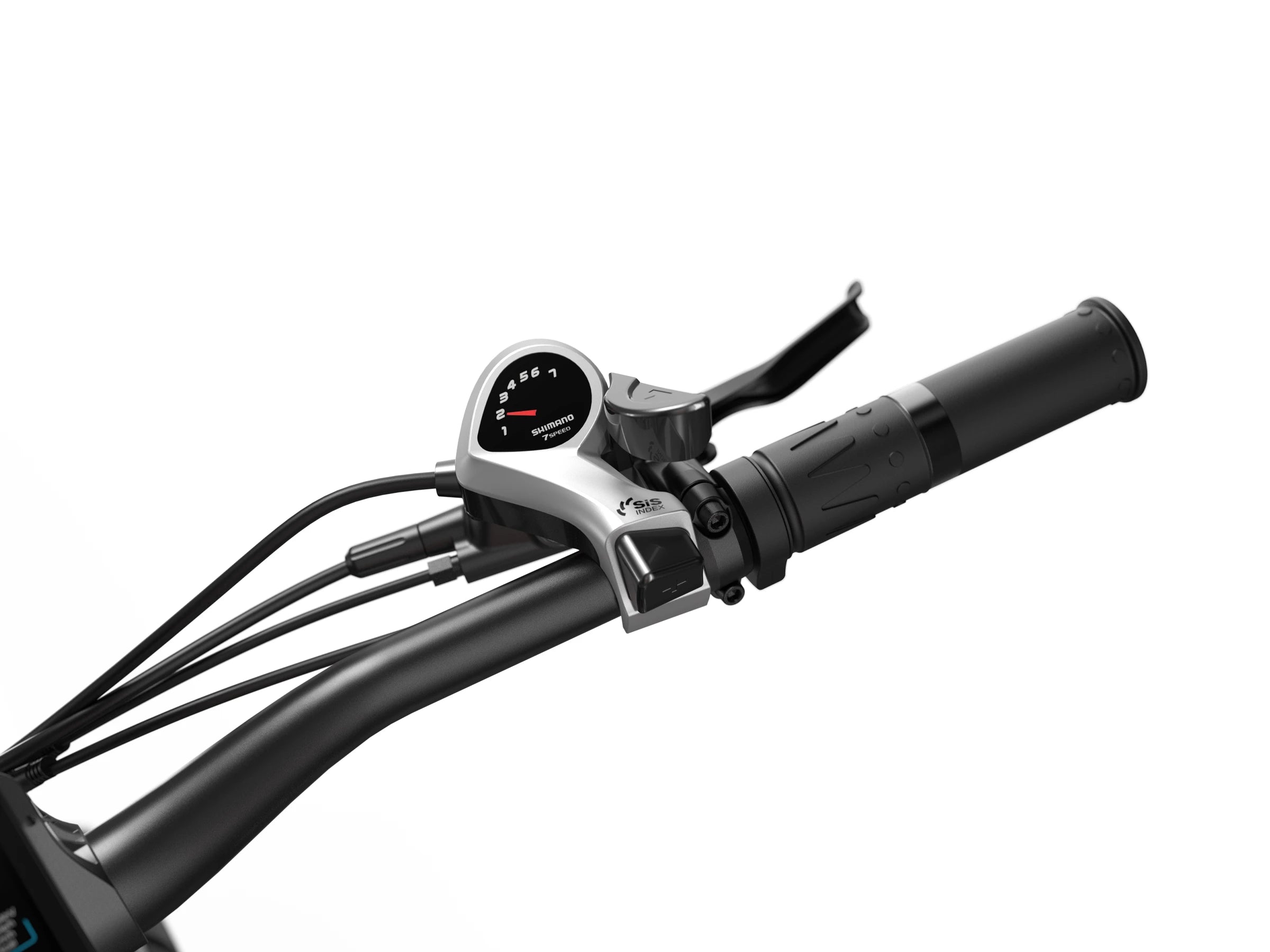

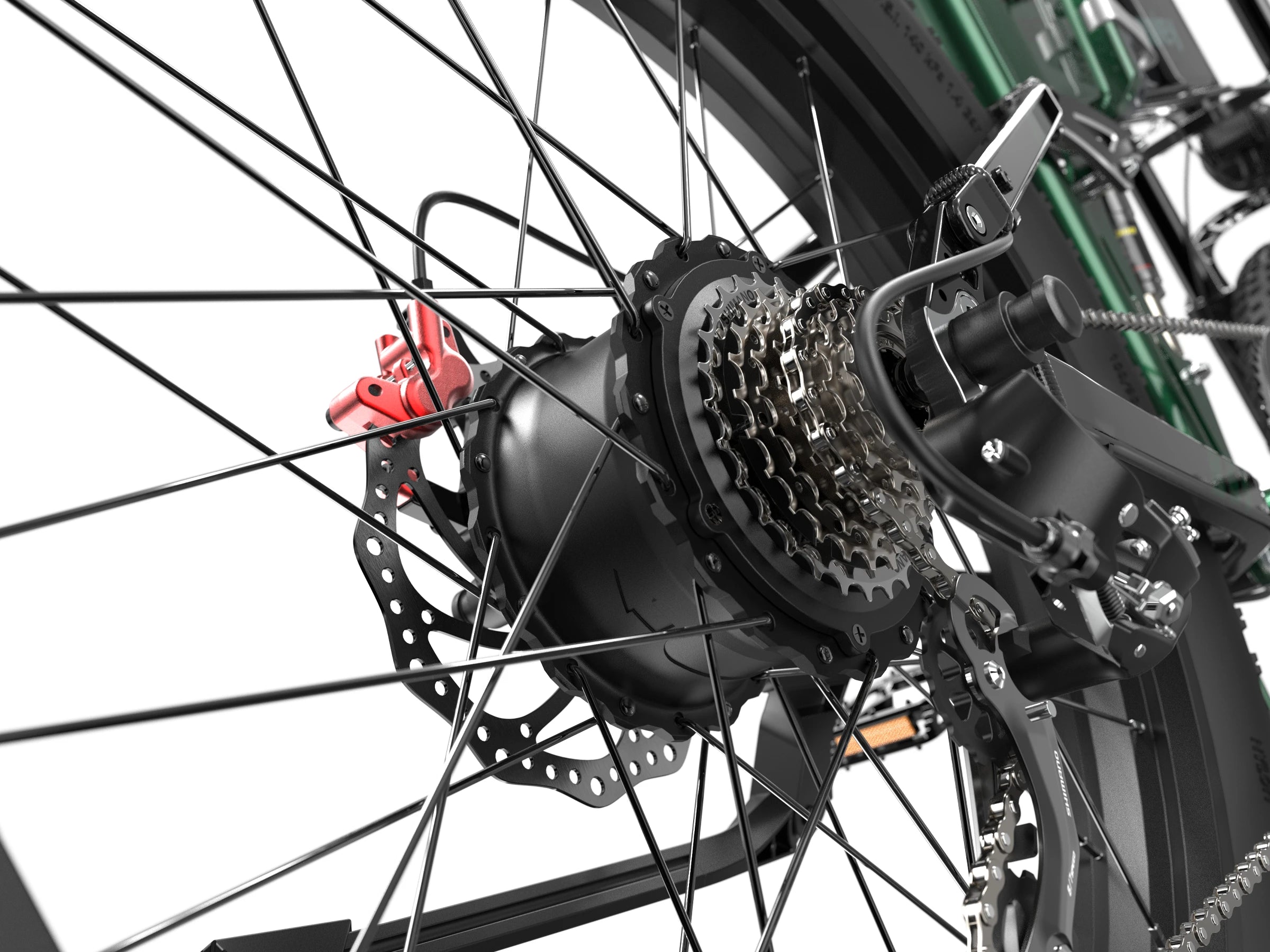

Gearing Shimano 7-Speed

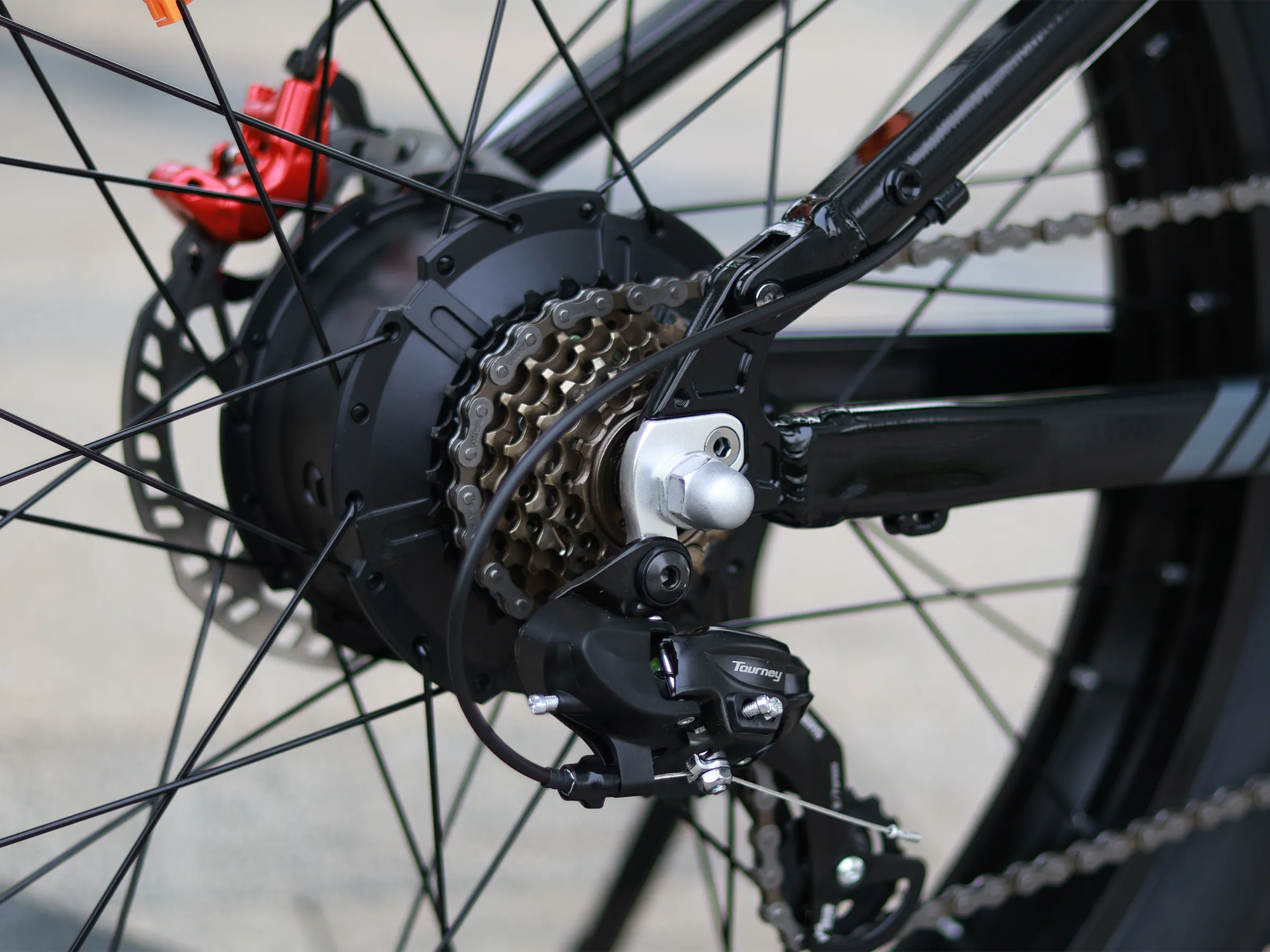

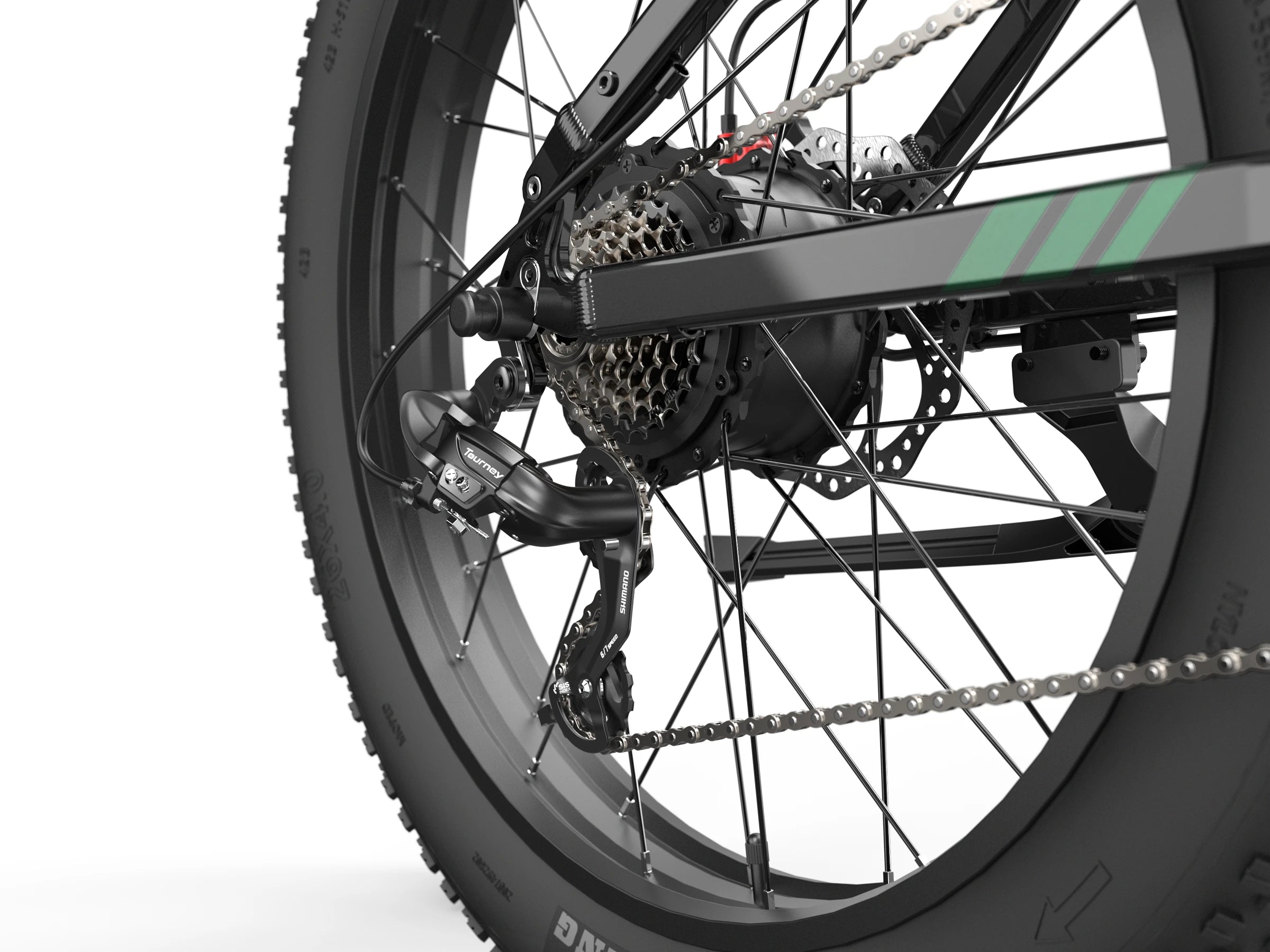

Derailleur Shimano 7 speed rear derailleur

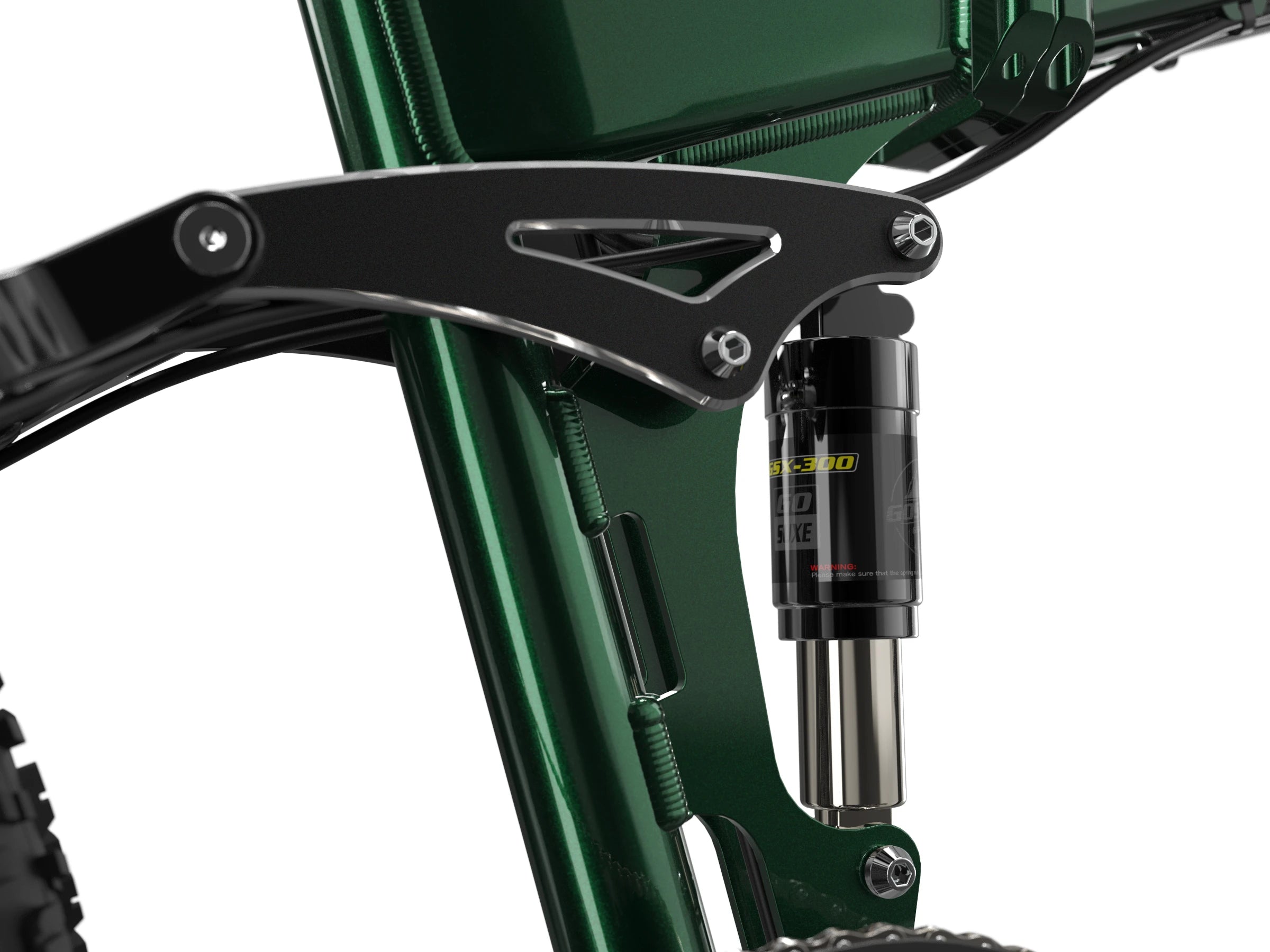

Front fork Oil spring shock absorber front fork

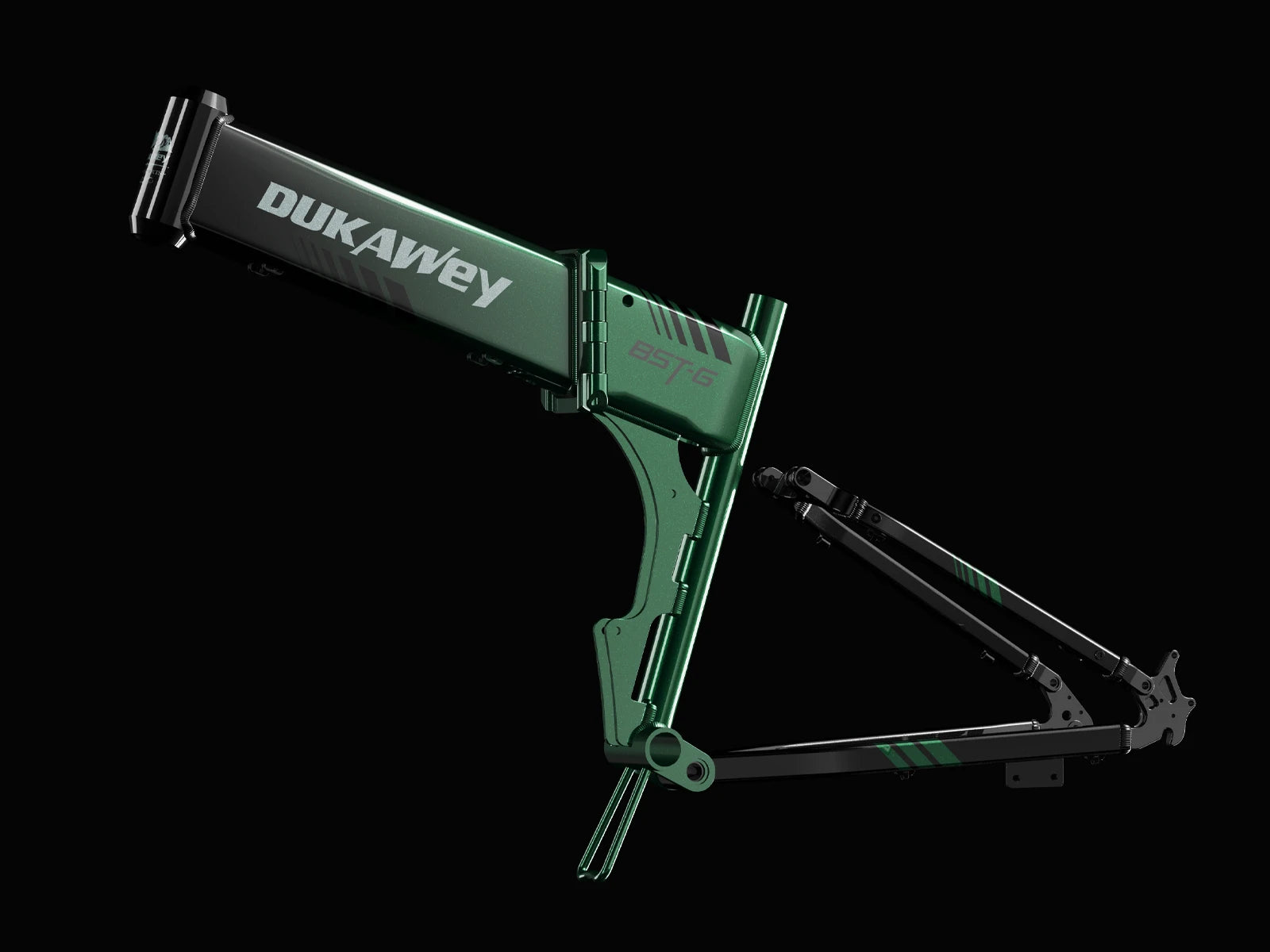

Frame Material 6061 Aluminum alloy
Handlebar 31.8mm aluminum alloy
Rims Aluminum Alloy
Kickstand 6061 Aluminum Kickstand

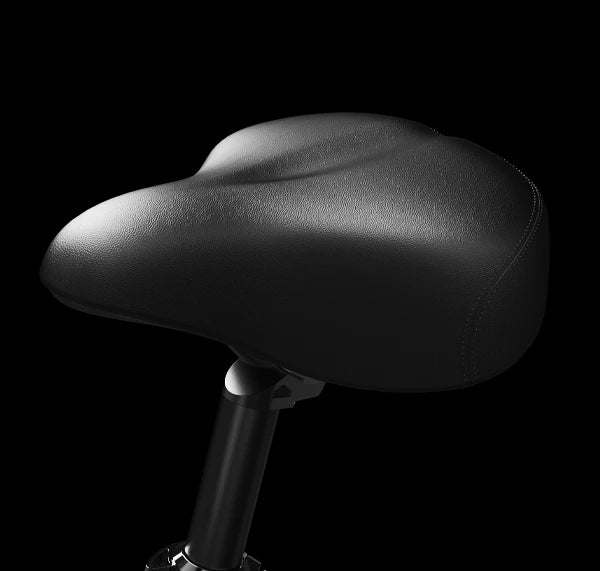

Saddle Quality sport seat
Sensor Cadence Sensor
Geometry
SIZE(mm) One Size
Applicable Height 5'7"(170cm)~6'5"(195cm)
A-Max Saddle Height 1070
B-Min Saddle Height 920
C-Seat tube length 460
D-Effective top tube 630
E-Head tube 150
F-Bar Height 1150
G-Chainstay 520
H-Wheelbase 1235
I-Standover Height 830
J-Seat tube angle 73°
K-Steering angle 70.5°
L-E-bike length 2030
*Specifcations are subject to change without notice.In case ofunexpected supply-sideimpacts, we will offer components ofequivalent or better capabilities.
table image
SIZE(mm) One Size
Applicable Height 5'7"(170cm)~6'5"(195cm)
A-Max Saddle Height 1070
B-Min Saddle Height 920
C-Seat tube length 460
D-Effective top tube 630
E-Head tube 150
F-Bar Height 1150
G-Chainstay 520
H-Wheelbase 1235
I-Standover Height 830
J-Seat tube angle 73°
K-Steering angle 70.5°
L-E-bike length 2030
*Specifcations are subject to change without notice.In case ofunexpected supply-sideimpacts, we will offer components ofequivalent or better capabilities.
